Mobile Turbine Gearbox Oil Replacement Service

Wind turbine oil change

image??????????????????

Fluid Transfer Services.

Our purpose-built mobile oil exchange unit ensures all up-tower systems are drained, flushed and filled in a safe and efficient manner. Our proven method and specialized equipment keeps down time to a minimum and ensures your human resources remain available for other maintenance and tasks on site.

As recently as 15 to 20 years ago the oil was changed by a human chain with buckets of oil. Some companies still rely on this method even now. However, it is hardly viable. First, manual labor is time consuming. Second, a simple oil change does not solve the problem since most contaminants remain in the gearbox after the change and quickly contaminate new oil.

Manually changing the oil is a difficult and time-consuming task. Workers lift and lower oil in special canisters using lifting devices (elevators or ladders). This would commonly require a team of three or four and about eight hours of work time.

Time and labor costs can be reduced by using special oil-change equipment that facilitates quick servicing with integrated oil containment and transportation tanks; an oil heater to reduce viscosity and speed oil pumping; gearbox cleaning with special flushing oil; and mitigation of oil spills and contact between the oil and the environment.

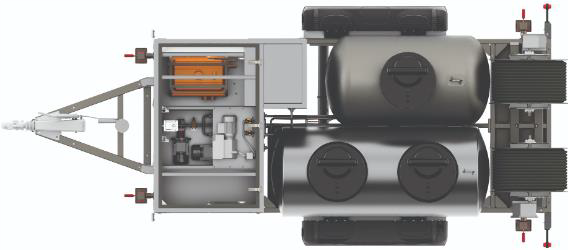

CG Ton lifting Consultants Mobile Turbine oil replacement unit consists of a Electrical 3 phase motor with rated pump, Electrical control panel, a clean oil tank, a used oil tank and drums for hoses. All parts are installed on a two axle trailer. Should power be unavailable, the unit can be powered by a generator.

The amount of oil supplied is recorded by  a pump nozzle with flow meter at the outlet of the filling hose.

A mesh filter protects pumps from large solid particles. A 12micron fine filter removes particles which may have accumulated in the oil during storage and transportation.

Advantanges of using the Mobile oil replacement unit.

• high quality servicing of wind turbine gearboxes;
• mobility and transportation on trailer or in container;
• compact dimensions;
• sufficient volume of tanks to change oil in three wind turbine gearboxes;
• oil change takes no more than one or 2-3 hours;
• hoses can be rapidly reeled in on motorized drums.

Economic Viability

The economic viability of using the wind turbine gear oil changer compared to manual labor is obvious.

For instance, changing 800 liters of oil requires 12 hours for a team of two. The same volume can be changed within 2-3 hours.



EXPLAIN DOWNTIME
